Technische karakteristieken
- Hoge slagvastheid, ook bij lage temperaturen
- Uitstekend thermovormbaar zonder voorverwarming
- Goed bestand tegen chemicaliën en vocht
- Geurloos en geschikt voor voedingscontact (FDA/EFSA)
- Vlamvertragende varianten beschikbaar
- Transparant met hoge lichttransmissie
- Geen spanningsscheuren bij normale verwerking
Typische toepassingen

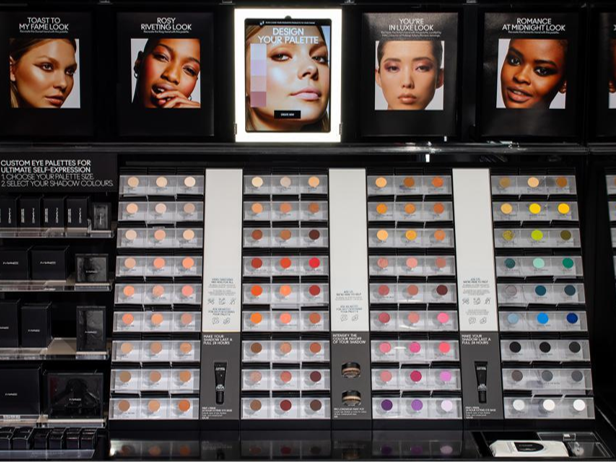

- Displays en presentatiesystemen
- Verpakkingen voor cosmetica, voedsel en medische producten

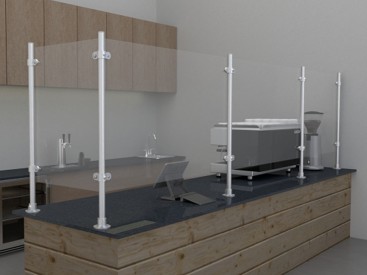

- Medische beschermschermen en spatmaskers
- POS-materiaal en bewegwijzering

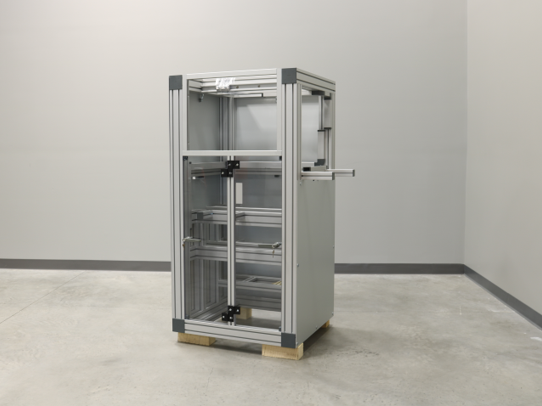

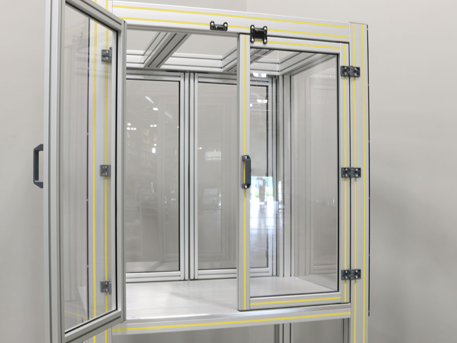

- Machineafschermingen en beschermkappen
Guideline Datasheet: PET-G (Polyethylene Terephthalate Glycol)
| Property | Test method | Unit | Guideline value |
|---|---|---|---|
| General properties | |||
| Density | ISO 1183‑1 | g/cm³ | 1.27 |
| Moisture absorption (23°C/50% RH) | ISO 62‑4 | % | 0.2 |
| Moisture absorption (saturated) | ISO 62‑1 | % | 0.6 |
| Refractive index (20 °C) | ISO 489 | – | 1.567 |
| Mechanical properties | |||
| Tensile stress at yield | ISO 527‑2/1B/50 | MPa | › 45 |
| Elongation at yield | ISO 527‑2/1B/50 | % | 4 |
| Tensile strength | ISO 527‑2/1B/50 | MPa | › 45 |
| Elongation at break | ISO 527‑2/1B/50 | % | › 35 |
| Elastic modulus | ISO 527‑2/1B/1 | MPa | 2020 |
| Limiting flexural stress | ISO 178 | MPa | ≈ 80 |
| Impact strength (Charpy, unnotched) | ISO 179/1fU | kJ/m² | no break |
| Impact strength (Charpy, notched) | ISO 179/1eA | kJ/m² | ≈ 7 |
| Izod notched | ISO 180/1A | kJ/m² | ≈ 6 |
| Thermal properties | |||
| Vicat softening temperature (B50) | ISO 306 | °C | 80 |
| Thermal conductivity | DIN 52612 | W/m·K | 0.2 |
| Linear thermal expansion coefficient | DIN 53752‑A | mm/m·K | 0.05 |
| Heat deflection temperature (1.80 MPa) | ISO 75‑2 | °C | 63 |
| Heat deflection temperature (0.45 MPa) | ISO 75‑2 | °C | 70 |
| Electrical properties | |||
| Dielectric strength | IEC 60243‑1 | kV/mm | 16.1 |
| Volume resistivity | IEC 60093 | Ω·cm | 10¹⁵ |
| Surface resistivity | IEC 60093 | Ω | 10¹⁶ |
| Dielectric constant (10³ Hz) | IEC 60250 | – | 2.6 |
| Dielectric constant (10⁶ Hz) | IEC 60250 | – | 2.4 |
| Dissipation factor (10³ Hz) | IEC 60250 | – | 0.005 |
| Dissipation factor (10⁶ Hz) | IEC 60250 | – | 0.02 |
Light Transmission
| Thickness (mm) | 0.6 | 0.75 | 1 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 15 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmission (%) | 90 | 90 | 90 | 90 | 89 | 89 | 88 | 88 | 87 | 86 | 85 | 84 | 80 | 80 |
Fire Rating
| Thickness (mm) | 0.6 | 0.75 | 1 | 1.5 | 2 | 2.5 | 3 | 4 |
|---|---|---|---|---|---|---|---|---|
| Clear 099 (°C) | 960 | 960 | 900 | 960 | 960 | 960 | 960 | 960 |
| Bronze (°C) | 850 | 960 | ||||||

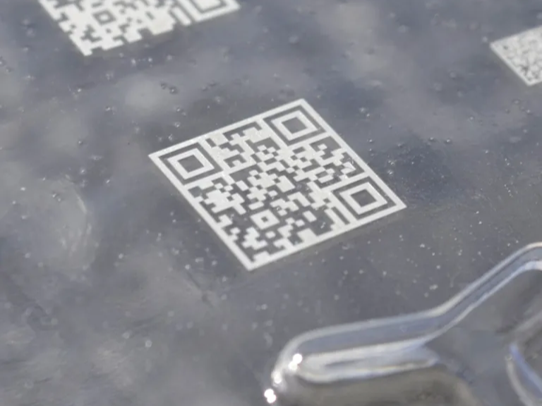

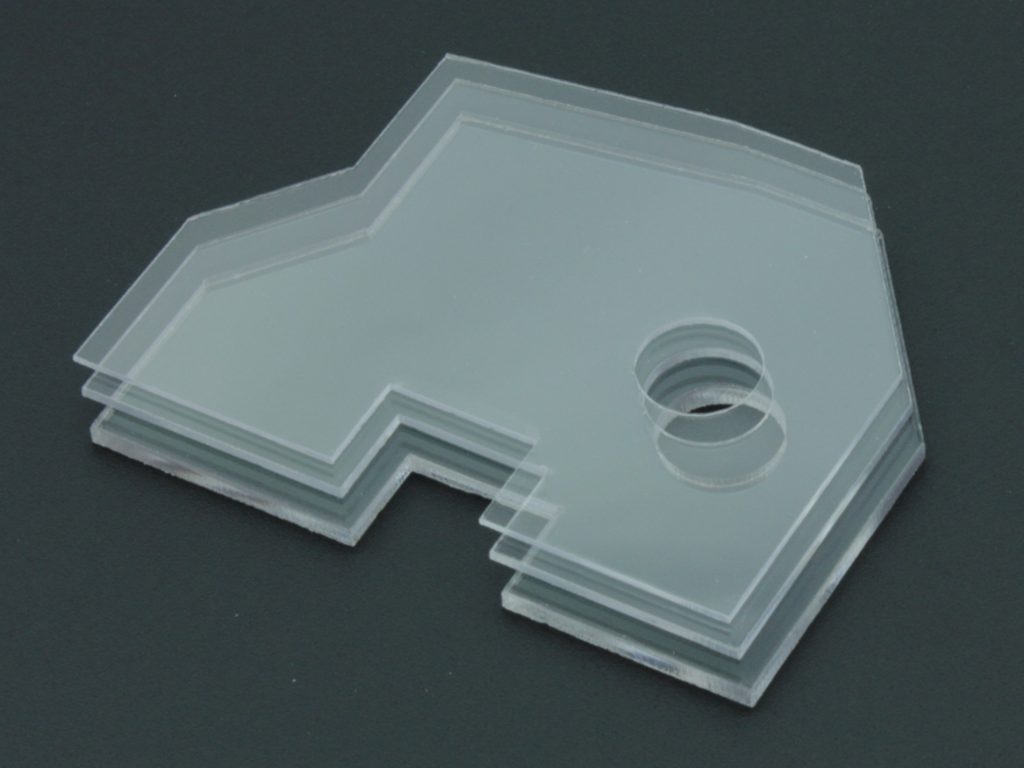

PETG bewerkt: cases en projectvoorbeelden
Comparison Polycarbonate, Acrylic and PET-G
| Property | Acrylic (PMMA) | PET-G | Polycarbonate (PC) |
|---|---|---|---|
| Transparency / Clarity | Excellent | High | High |
| Density / Weight | Low | Low | Low |
| Tensile Strength vs Glass | 30x stronger | 150x stronger | 250x stronger |
| Weather Resistance | Excellent | Good | Good |
| Cold Bending | Limited | Medium | Good |
| Hot Bending | Good | Good | Good |
| Printability | Good | Good | Good |
| Fire Rating* (DIN 4102) | B2 (normally flammable) | B1 (hardly flammable) | B1 (hardly flammable) |
* Fire rating according to DIN 4102 (German fire safety standard):
| Class | Description |
|---|---|
| A1 | 100% non-combustible |
| A2 | 98% non-combustible |
| B1 | Hardly flammable |
| B2 | Normally flammable |
| B3 | Easily flammable |
Toepassing niet vermeld, eigen materiaal, of behoefte aan gedetailleerde specificaties?
Onze expertise gaat verder dan de genoemde voorbeelden. Neem contact met ons op om de technische mogelijkheden voor uw project te bespreken.
