Technische karakteristieken
- Zeer hoge slagvastheid, vrijwel onbreekbaar
- Transparant met hoge lichtdoorlatendheid (~90%)
- Goede warmtebestendigheid tot circa 120°C
- Goede maatvastheid en dimensionele stabiliteit
- Goede elektrische isolatie-eigenschappen
- Beperkte chemische bestendigheid, gevoelig voor zuren en oplosmiddelen

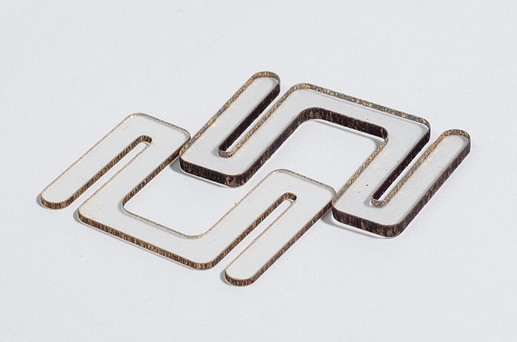

- Goed thermovormbaar en bewerkbaar
- UV-bestendig met speciale additieven
Typische toepassingen
- Veiligheids- en beschermingsbeglazing (bv. kogelwerend glas)

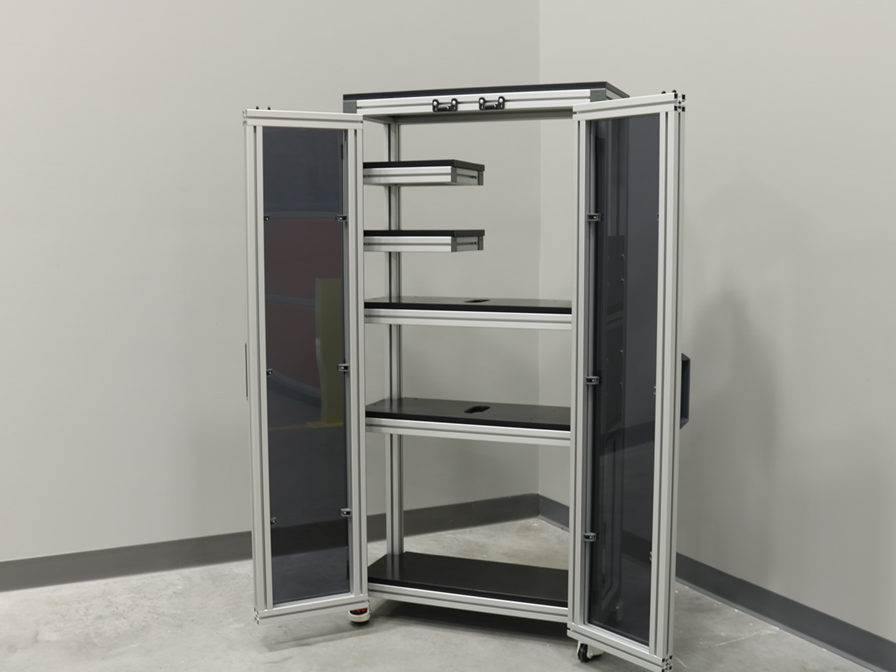

- Machinebouw: afschermingen, beschermkappen en behuizingen
- Automotive onderdelen zoals koplampen en interieurpanelen
- Elektronica behuizingen en onderdelen

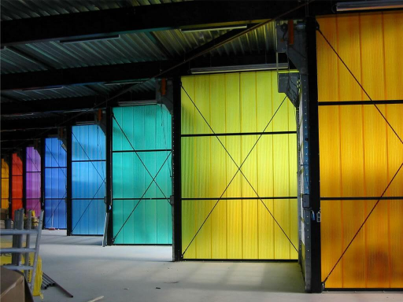

- Lichtkoepels en dakplaten
- Medische apparatuur en instrumenten
- Optische toepassingen, lenzen en brilglazen
- Consumptiegoederen en sportuitrusting
Guideline Datasheet: Polycarbonate (PC)
| Property | Test method | Unit | Value |
|---|---|---|---|
| General properties | |||
| Density | ISO 1183 | g/cm³ | 1.2 |
| Water absorption (normal climate) | - | % | 0.2 |
| Flammability | DIN 4102 | - | B 1 |
| Specific heat capacity | - | kJ/kg·°C | 1.17 |
| Mechanical properties | |||
| Tensile strength | DIN 53455 | N/mm² | 70 |
| Elongation at break | DIN 53455 | % | 100 |
| Elastic modulus (23°C) | DIN 53457 | N/mm² | 2500 |
| Flexural strength | DIN 53452 | N/mm² | 75 |
| Impact strength (Charpy, 23°C) | DIN 53453 | - | 40 |
| Shore hardness | - | Shore D | 80 |
| Coefficient of friction | - | - | 0.39 |
| Electrical properties | |||
| Dielectric constant (100 Hz) | DIN 53485 | - | 3.0 |
| Dissipation factor (100 Hz) | DIN 53483 | - | 0.0007 |
| Volume resistivity | DIN 53482 | Ω·cm | 10¹⁶ |
| Surface resistivity | DIN 53482 | Ω | 10¹³ |
| Comparative tracking index | DIN 53480 | KC | 260–300 |
| Dielectric strength | DIN 53481 | kV/mm | 38 |
| Thermal properties | |||
| Melting temperature | - | °C | 230 |
| Thermal conductivity | DIN 52162 | W/m·K | 0.21 |
| Coefficient of linear thermal expansion | DIN 53762 | mm/m·°C | 0.07 |
| Continuous use temperature (unloaded) | - | °C | -30 to 120 |
| Max. short-term use temperature | - | °C | 150 |
| Heat deflection temperature | DIN 53461 | °C | 138 |
Comparison Polycarbonate, Acrylic and PET-G
| Property | Acrylic (PMMA) | PET-G | Polycarbonate (PC) |
|---|---|---|---|
| Transparency / Clarity | Excellent | High | High |
| Density / Weight | Low | Low | Low |
| Tensile Strength vs Glass | 30x stronger | 150x stronger | 250x stronger |
| Weather Resistance | Excellent | Good | Good |
| Cold Bending | Limited | Medium | Good |
| Hot Bending | Good | Good | Good |
| Printability | Good | Good | Good |
| Fire Rating* (DIN 4102) | B2 (normally flammable) | B1 (hardly flammable) | B1 (hardly flammable) |
* Fire rating according to DIN 4102 (German fire safety standard):
| Class | Description |
|---|---|
| A1 | 100% non-combustible |
| A2 | 98% non-combustible |
| B1 | Hardly flammable |
| B2 | Normally flammable |
| B3 | Easily flammable |
Toepassing niet vermeld, eigen materiaal, of behoefte aan gedetailleerde specificaties?
Onze expertise gaat verder dan de genoemde voorbeelden. Neem contact met ons op om de technische mogelijkheden voor uw project te bespreken.
